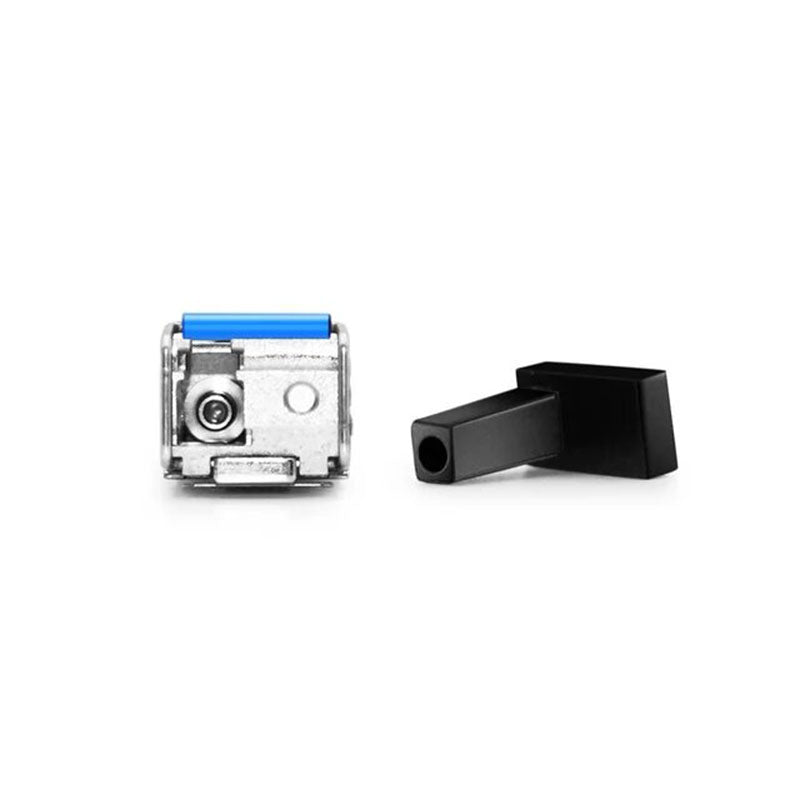

SFP-GE34-BX20 1.25Gbps SFP Transceiver, Single Mode, 20km Reach 1310nm TX / 1490nm RX
SFP-GE34-BX20 1.25Gbps SFP Transceiver, Single Mode, 20km Reach 1310nm TX / 1490nm RX
Regular price
$8.29 USD
Regular price
Sale price
$8.29 USD
Unit price
/
per
1 Description
The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
2 Product Features
- Supports up to 1.25Gbps bit rates
- Hot-pluggable SFP footprint
- 1310nm FP laser and PIN photo detector, Up to 20km for SMF transmission
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Compatible with RoHS
- Single +3.3V power supply
- Real Time Digital Diagnostic Monitoring
- Operating case temperature:Standard: 0 to +70°C
3 Application Scenario
- 25Gbps Optical systems
- Gigabit Ethernet
- 1.063Gbps Fiber Channel
- Other Optical links
4 Order Information
Part Number |
Product Description |
SFP-GE34-BX20C |
1310T/1490R, 1.25Gbps, LC, 20km, 0°C~+70°C, with DDM |
