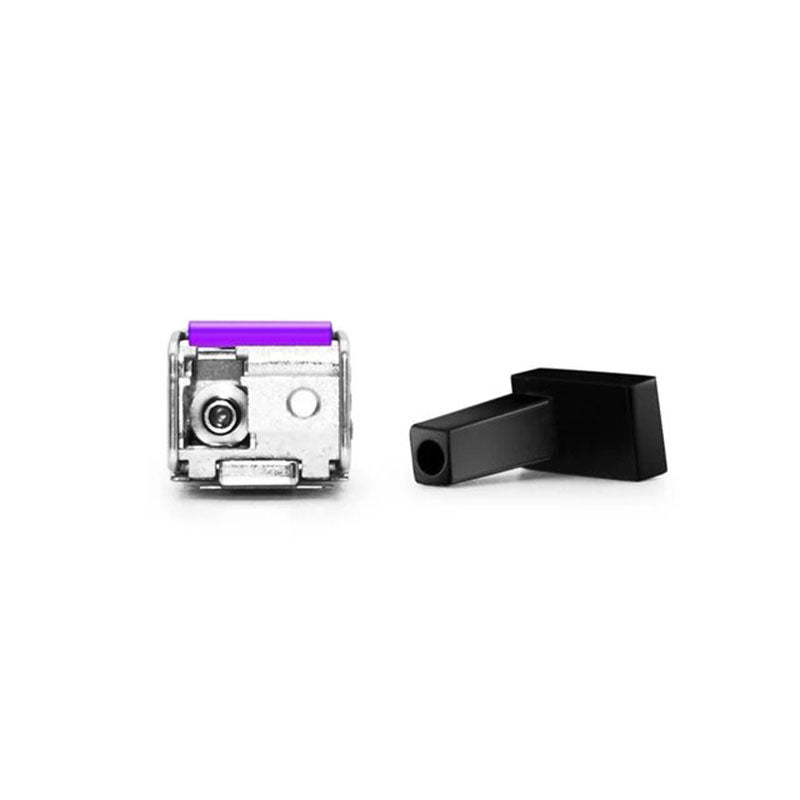

SFP-GE45-BX80 1.25Gbps SFP Transceiver, Single Mode, 80km Reach 1490nm TX / 1550nm RX

1 Description

The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 80km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

2  Product Features

• Supports up to 1.25Gbps bit rates
• Hot-pluggable SFP footprint
• 1490nm DFB laser and PIN photo detector, Up to 80km for SMF transmission
• Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
• Compatible with RoHS
• Single +3.3V power supply
• Real Time Digital Diagnostic Monitoring
• Operating case temperature:Standard: 0 to +70°C

3 Application Scenario

• 25Gbps Optical systems
• Gigabit Ethernet
• 1.063Gbps Fiber Channel
• Other Optical Links

4 Order Information
