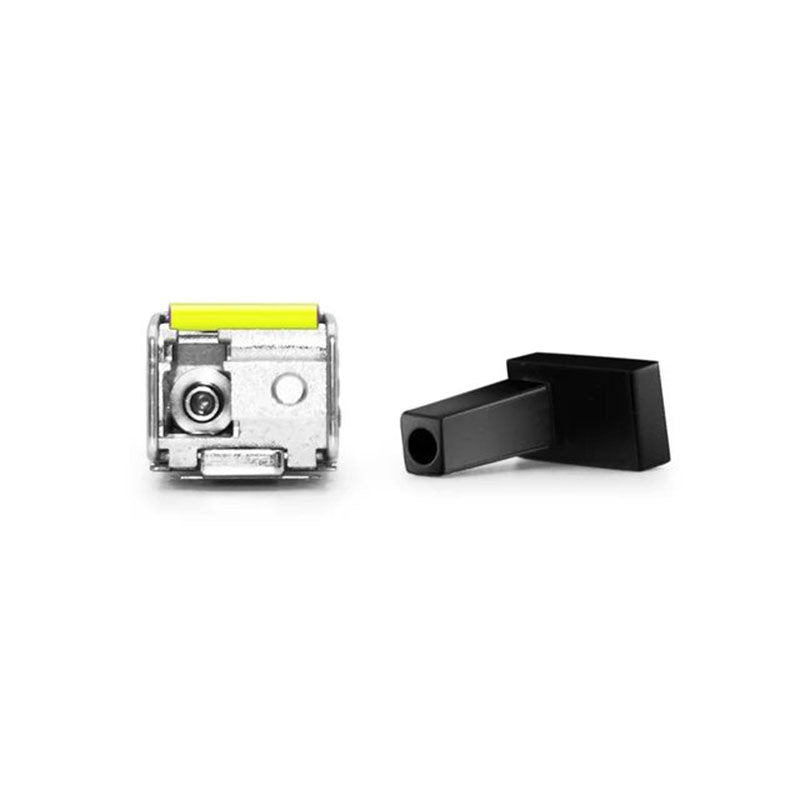

SFP-GE53-BX10 1.25Gbps SFP Transceiver, Single Mode, 10km Reach 1550nm TX / 1310nm RX

SFP-GE53-BX10 1.25Gbps SFP Transceiver, Single Mode, 10km Reach 1550nm TX / 1310nm RX

Regular price $9.14 USD
Regular price Sale price $9.14 USD
Sale Sold out

1 Description

The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

2 Product Features

  • Supports up to 1.25Gbps bit rates
  • Hot-pluggable SFP footprint
  • 1550nm DFB laser and PIN photo detector, Up to 10km for SMF transmission
  • Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real Time Digital Diagnostic Monitoring
  • Operating case temperature:Standard: 0 to +70°C

3 Application Scenario

  • 25Gbps Optical systems
  • Gigabit Ethernet
  • 1.063Gbps Fiber Channel
  • Other Optical links

4 Order Information

Part Number

Product Description

SFP-GE53-BX10C

1550T/1310R, 1.25Gbps, LC, 10km, 0°C~+70°C, with DDM
