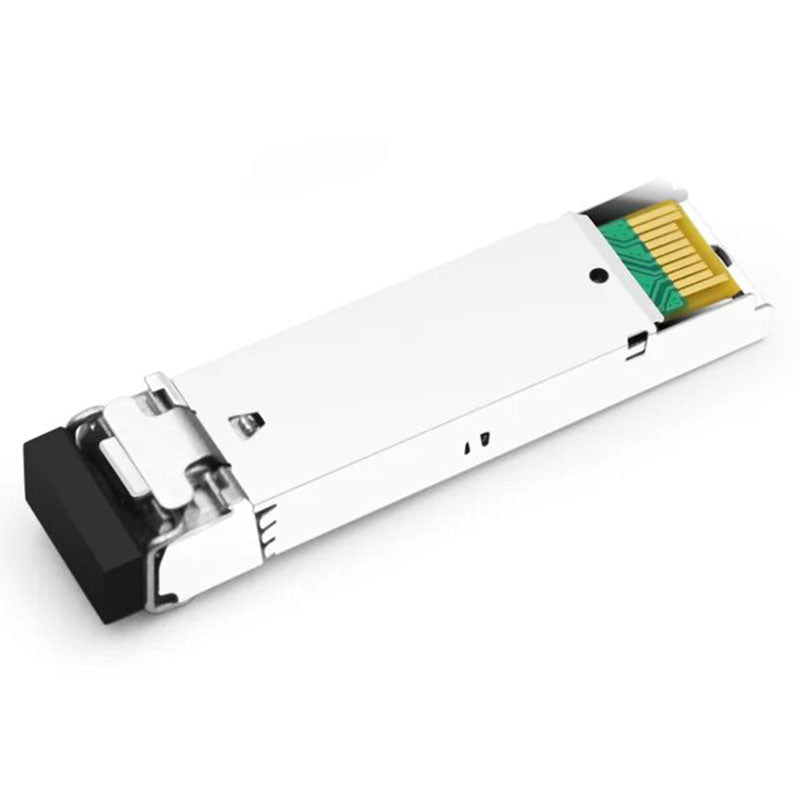

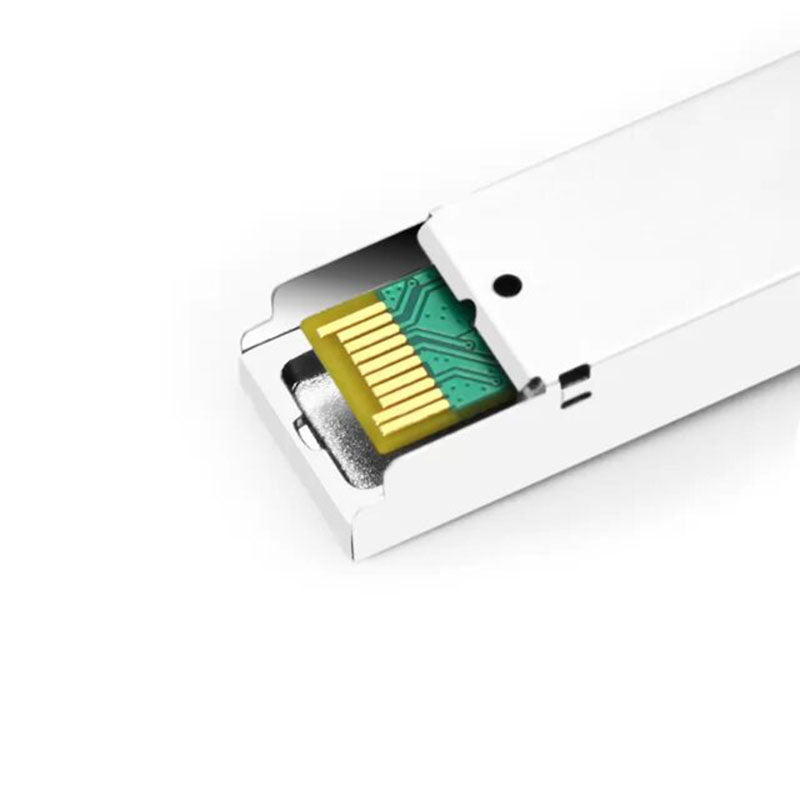

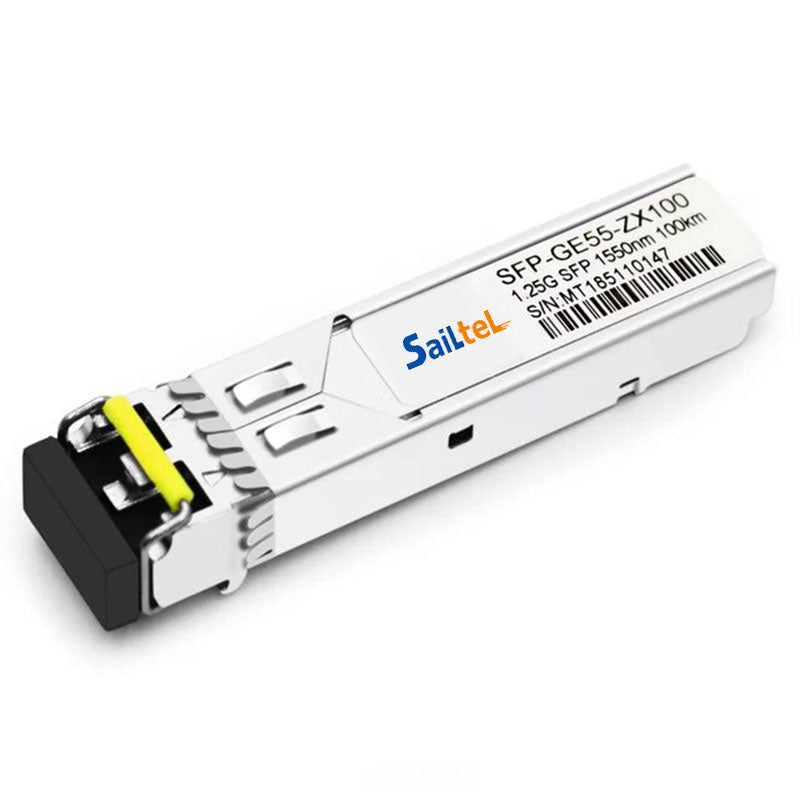

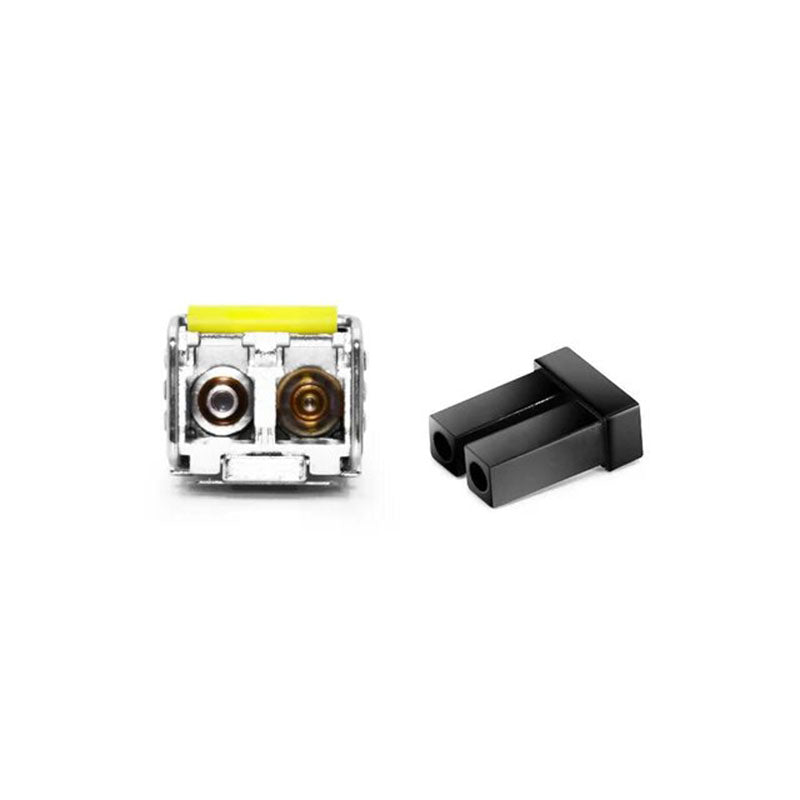

SFP-GE55-ZX100 1.25Gbps SFP Transceiver, Single Mode, 100km Reach

1 Description

The SFP transceivers are high performance, cost effective modules supporting dual data- rate of 1.25Gbps/1.0625Gbps and 100km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

2 Product Features

• Dual data-rate of 1.25Gbps/1.063Gbps operation
• 1550nm DFB laser and APD photodetector for 100km transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Compatible with SONET OC-24-LR-1
• Compatible with RoHS
• +3.3V single power supply
• Operating case temperature:Standard: 0 to +70°C

3 Application Scenario

• Gigabit Ethernet
• Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems

4 Order Information
