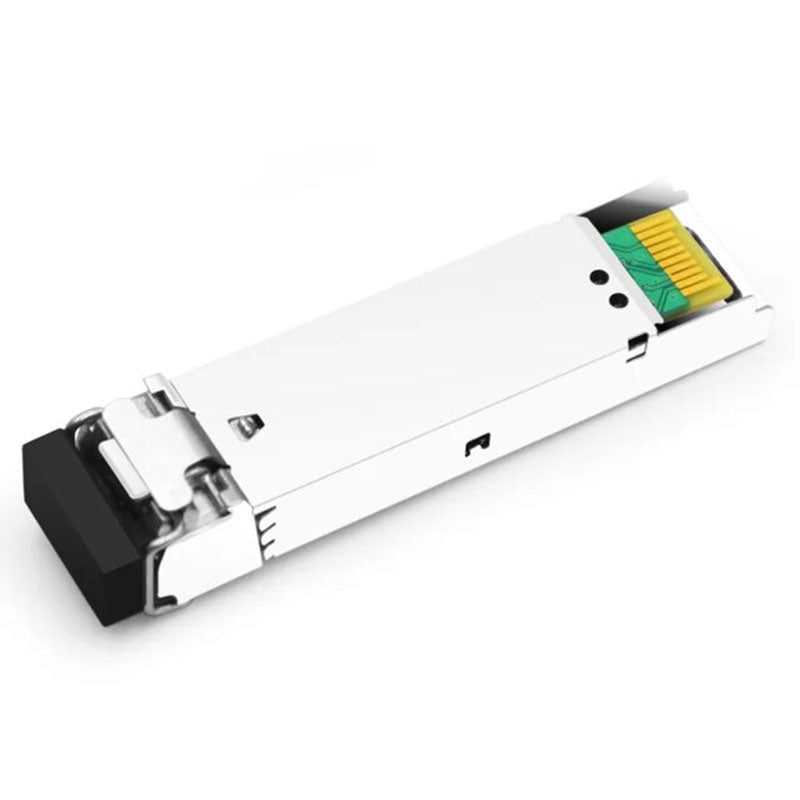

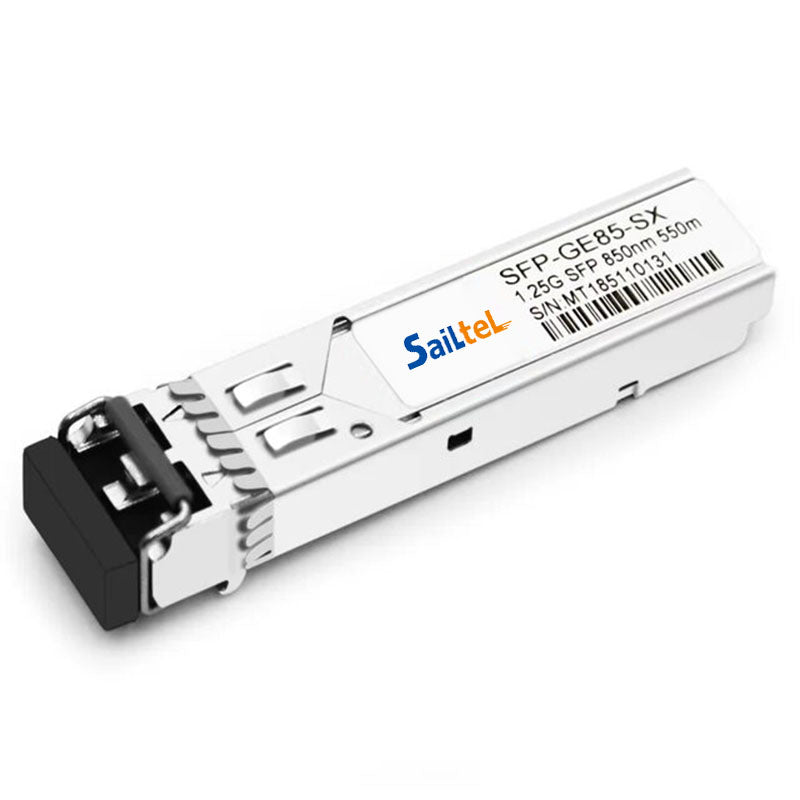

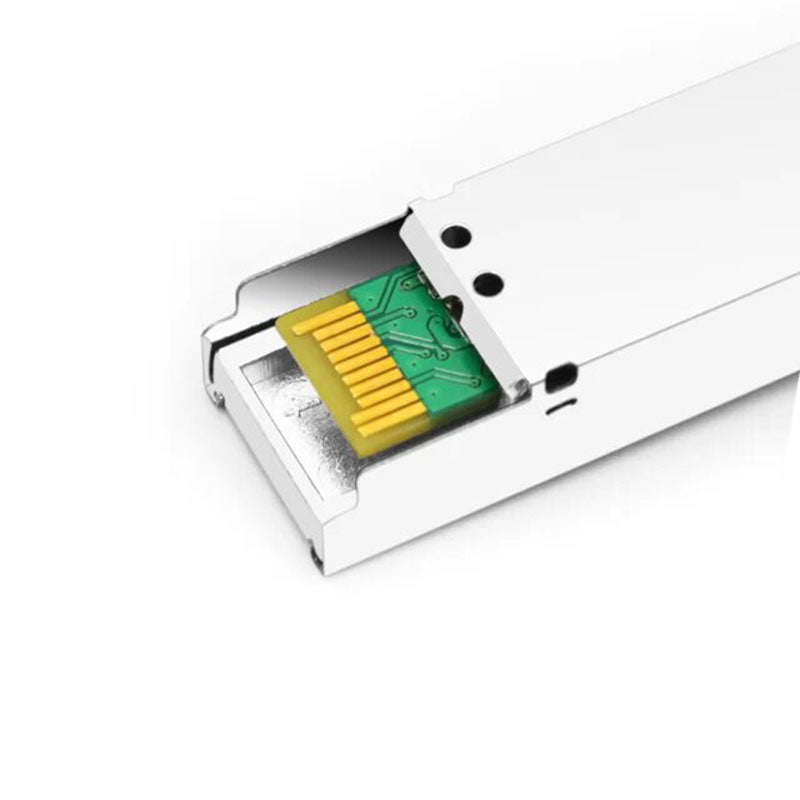

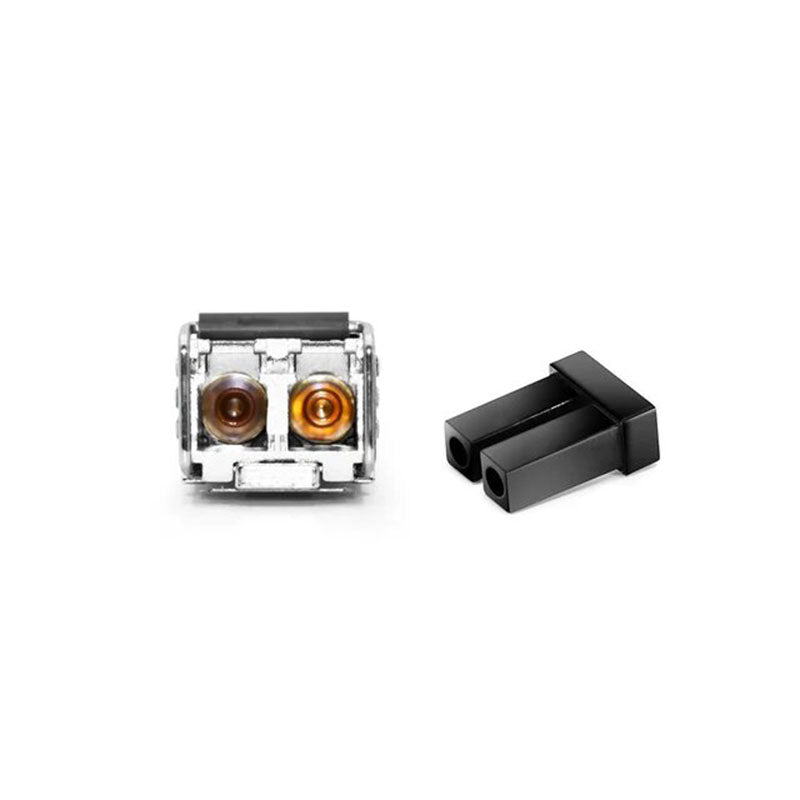

SFP-GE85-SX 1.25Gbps SFP Transceiver, Multi Mode, 550m Reach

SFP-GE85-SX 1.25Gbps SFP Transceiver, Multi Mode, 550m Reach

$6.29 USD
$6.29 USD
Sale Sold out

1 Description

The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 550m transmission distance with MMF.

The transceiver consists of three sections: a VSCEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

2 Product Features

  • Supports up to 1.25Gbps bit rates
  • Hot-pluggable SFP footprint
  • 850nm VCSEL laser and PIN photo detector, Up to 550m for MMF transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real Time Digital Diagnostic Monitoring
  • Operating case temperature:Standard: 0 to +70°C

3 Application Scenario

  • 25Gbps Optical systems
  • Gigabit Ethernet
  • 1.063Gbps Fiber Channel
  • Other Optical links

4 Order Information

Part Number

Product Description

SFP-GE85-SXC

1.25Gbps SFP,850nm, LC, 550m, 0°C~+70°C, with DDM
