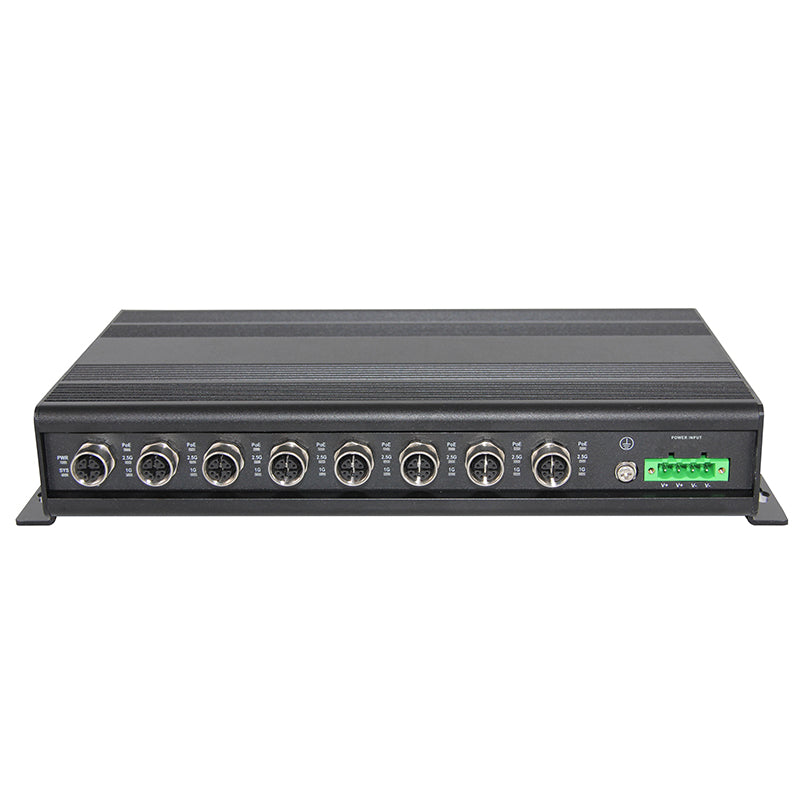

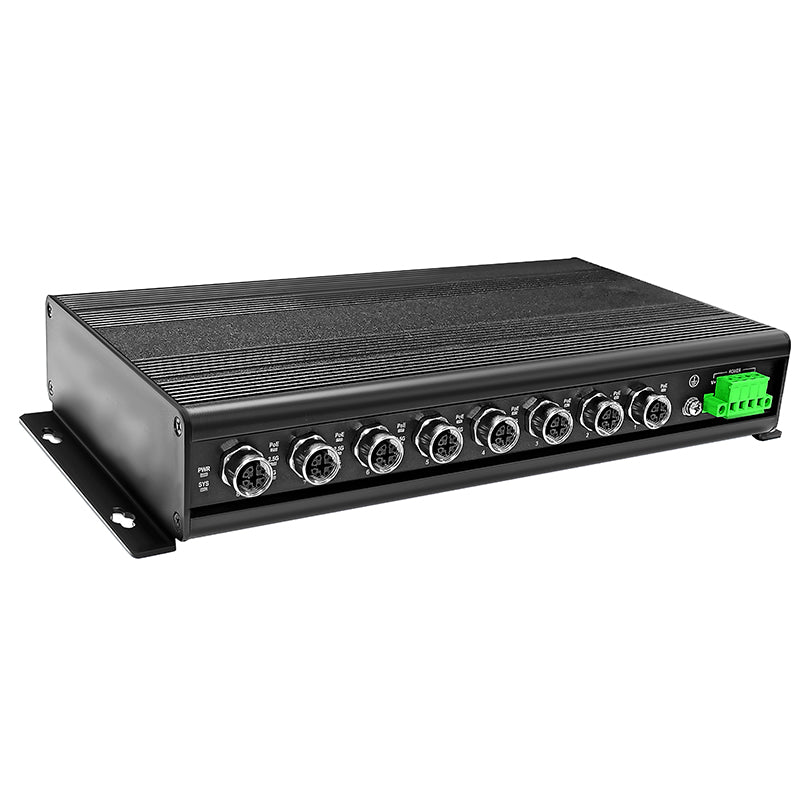

TNS4008-8P-M12-DC Full 2.5G M12 Industrial PoE Ethernet Switch
TNS4008-8P-M12-DC Full 2.5G M12 Industrial PoE Ethernet Switch
Couldn't load pickup availability
1 Description
The TNS4008-8P-DC is a high-performance Ethernet Switch with 8 x 100/1000/2500Mbps M12 (X-code) Copper ports with 8 PoE, which meets the high reliability requirements demanded by industrial rolling stock applications. The TNS4008-EI-P-DC is designed to meet which critical network environment M12 connectors. It is best for railway in train/track side, vehicle and mining applications. For more usage flexibilities, supports wide operating temperature from -40~75℃.
2 Feature
- Supports 8 100/1000/2500Base-TX with X-coded M12 connectors
- Supports up to 240W PoE/PoE+ (IEEE 802.3af/at) on all 8 100/1000/2500Base-TX PoE ports
- Supports RSTP, EAPS, ERPS ring network redundancy protocols
- Surge protection for power port and data ports
- Wide working temperature: -40~75℃
- IP40 protection class
- 200,000 hours MTBF (Parts count reliability prediction)
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
8 x 100/1000/2500Base-TX with X-coded M12 connectors |
|
LED Indicators |
Power, Link/Act, Speed, PoE |
|
Performance |
|
|
Switching Capacity |
40 Gbps |
|
Forwarding Capacity |
29.76 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
12 Mbit |
|
MAC Address Table |
16K |
|
Physical |
|
|
Dimensions |
292 x 147.5 x 50 mm |
|
Weight |
1.65KG |
|
Operating Temperature |
-40 to 75℃ |
|
Storage Temperature |
-40 to 75℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
44-57VDC |
|
Max. Power Consumption |
Including PoE Output: 240W Excluding PoE Output: 15W |
|
EMC Safety |
FCC, CE, RoHS |
|
Power over Ethernet |
|
|
PoE Interfaces |
Ports 1-8 |
|
PoE Standard |
IEEE802.3af, IEEE802.3at |
|
Max. PoE Wattage per Port |
30W |
|
PoE Voltage |
52VDC (Depend on Power Adapter) |
|
PoE Pin Assignment |
V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6) |
|
Package List |
|
|
PoE Switch |
1pcs |
|
Power Adapter |
1pcs |
|
User Manual |
1pcs |
|
Power Cord |
1pcs |
|
Rubber Feet |
4pcs |
4 Order Information
|
Switch Models |
|
|
TNS4008-8P-M12-DC |
8 x 2.5G M12 Industrial PoE Ethernet Switch |
