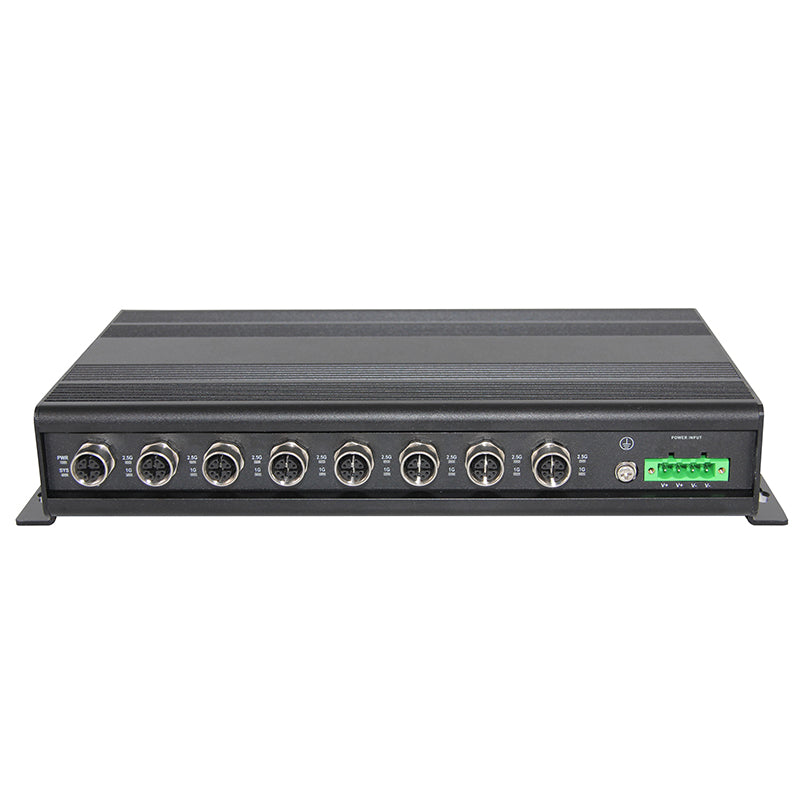

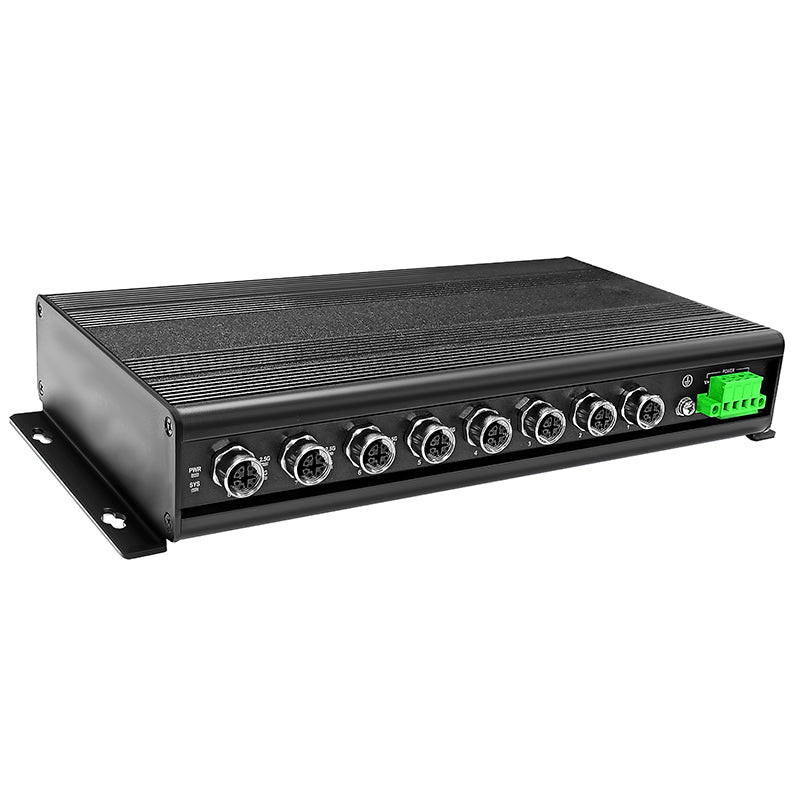

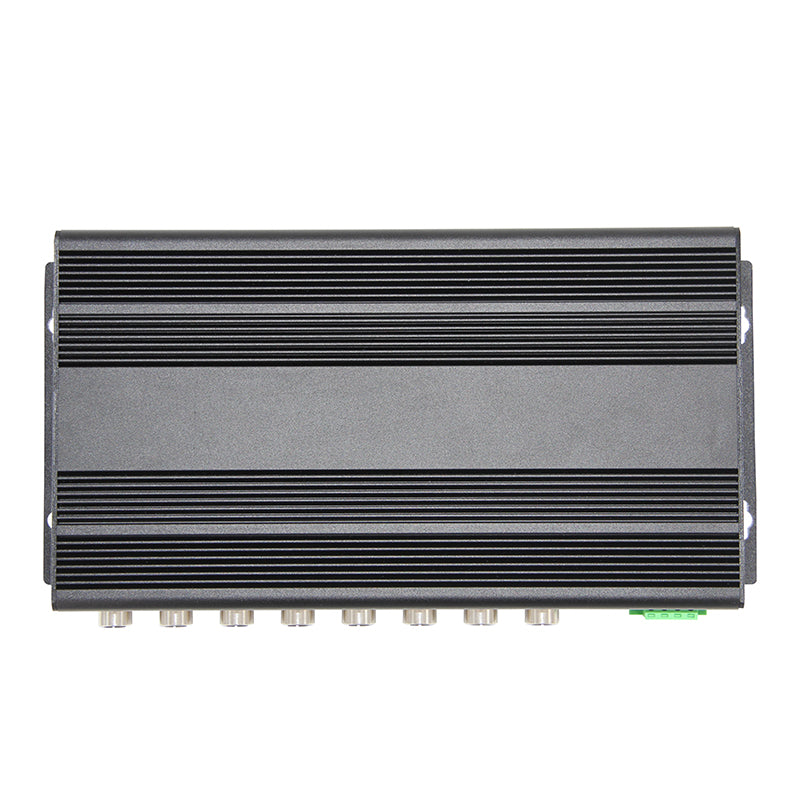

TNS4008-M12-DC Full 2.5G M12 Industrial Ethernet Switch
TNS4008-M12-DC Full 2.5G M12 Industrial Ethernet Switch
Couldn't load pickup availability
1 Description
The TNS4008-DC is a high-performance Ethernet Switch with 8 x 100/1000/2500Mbps M12 (X-code) Copper ports, which meets the high reliability requirements demanded by industrial rolling stock applications. The TNS4008-EI-DC is designed to meet which critical network environment M12 connectors. It is best for railway in train/track side, vehicle and mining applications. For more usage flexibilities, supports wide operating temperature from -40~75℃.
2 Specifications
|
Attributes |
|
|
Networking Interfaces |
8 x 100/1000/2500Base-TX with X-coded M12 connectors |
|
LED Indicators |
Power, Link/Act, Speed |
|
Performance |
|
|
Switching Capacity |
40 Gbps |
|
Forwarding Capacity |
29.76 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
12 Mbit |
|
MAC Address Table |
16K |
|
Physical |
|
|
Dimensions |
292 x 147.5 x 50 mm |
|
Weight |
1.6KG |
|
Operating Temperature |
-40 to 75℃ |
|
Storage Temperature |
-40 to 75℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
12-60VDC |
|
Max. Power Consumption |
15W |
|
EMC Safety |
FCC, CE, RoHS |
|
Package List |
|
|
Switch |
1pcs |
|
Power Adapter |
1pcs |
|
User Manual |
1pcs |
|
Power Cord |
1pcs |
|
Rubber Feet |
4pcs |
3 Order Information
|
Switch Models |
|
|
TNS4008-M12-DC |
8 x 2.5G M12 Industrial Ethernet Switch |
