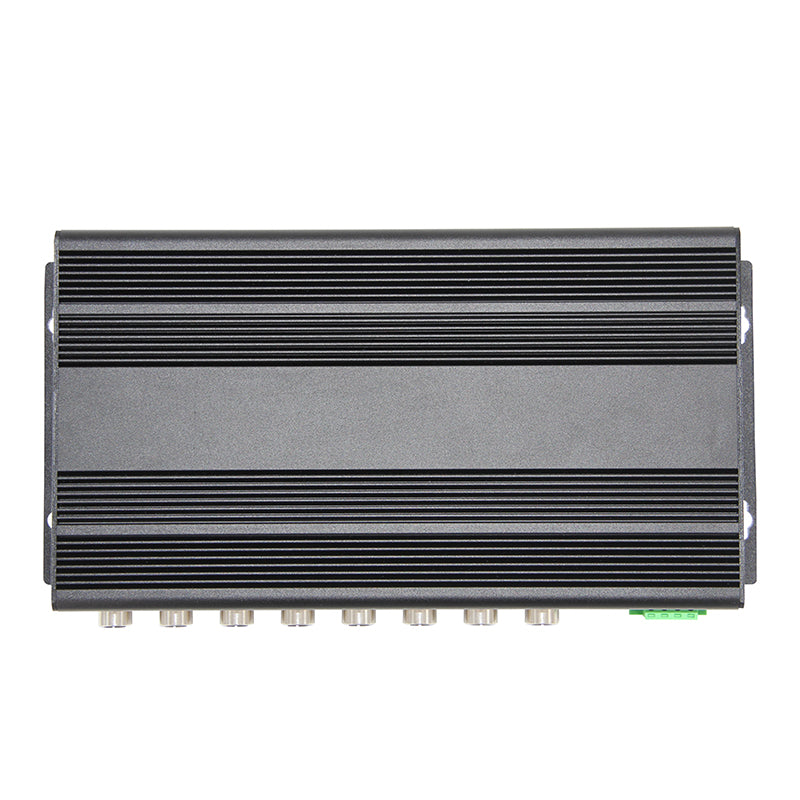

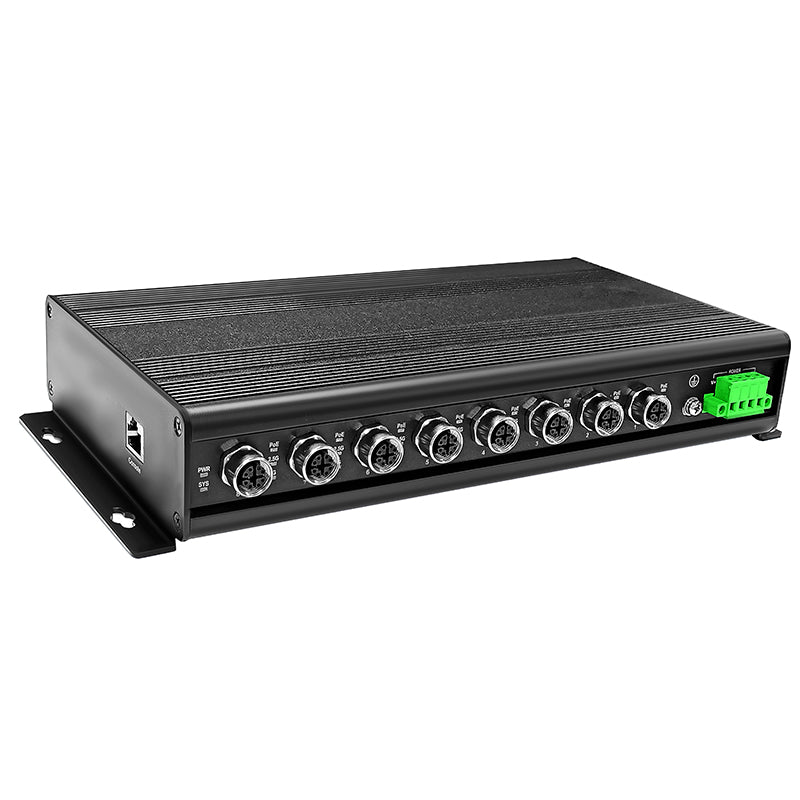

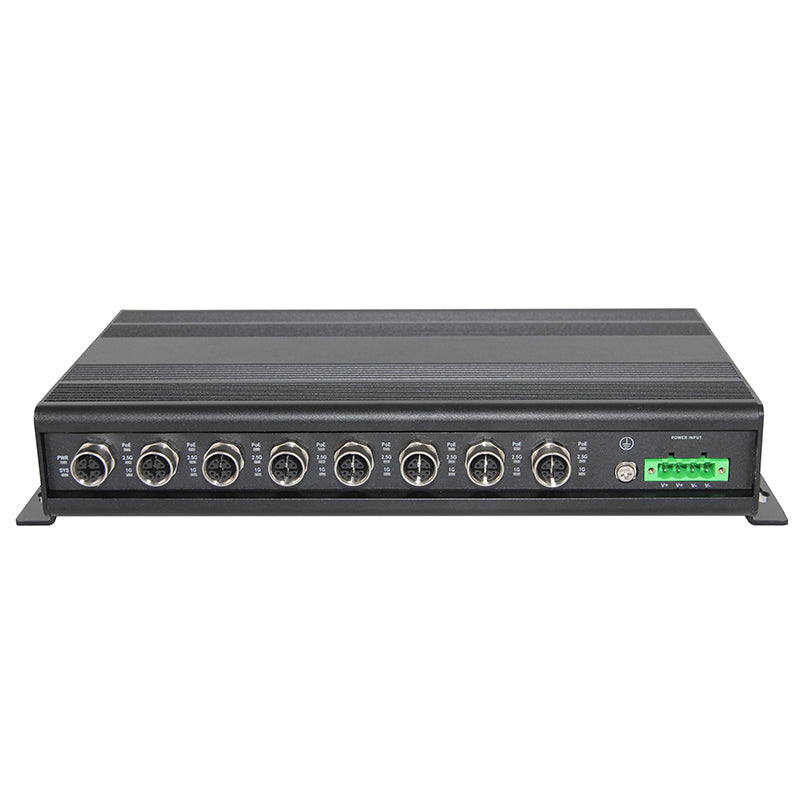

TNS4208-8P-M12-DC Full 2.5G M12 Layer 3 Managed Industrial PoE Ethernet Switch
TNS4208-8P-M12-DC Full 2.5G M12 Layer 3 Managed Industrial PoE Ethernet Switch
Couldn't load pickup availability
1 Description
The TNS4208-8P-DC is a high-performance Ethernet Switch with 8 x 100/1000/2500Mbps M12 (X-code) Copper ports with 8 PoE, which meets the high reliability requirements demanded by industrial rolling stock applications. The TNS4208-EI-P-DC is designed to meet which critical network environment M12 connectors. It is best for railway in train/track side, vehicle and mining applications. For more usage flexibilities, supports wide operating temperature from -40~75℃.
The network management system supports various network protocols and industry standards, such as static routing, STP/RSTP/MSTP, ERPS, 802.1Q VLAN, QoS function, DHCP Server, IGMP Snooping, LLDP, port trunking, port mirroring, etc. It also possesses complete management functions, support port configuration, port statistics, port IP binding, access control, network diagnosis, rapid configuration, online upgrade, etc.; CLI, WEB, Telnet, SNMP, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
2 Feature
- Supports 8 100/1000/2500Base-TX with X-coded M12 connectors
- Supports up to 240W PoE/PoE+ (IEEE 802.3af/at) on all 8 100/1000/2500Base-TX PoE ports
- Supports RSTP, EAPS, ERPS ring network redundancy protocols
- Supports Layer 3 routing protocols such as static Routing, OSPF, RIP and VRRP (L3 switch only)
- Surge protection for power port and data ports
- Wide working temperature: -40~75℃
- IP40 protection class
- 200,000 hours MTBF (Parts count reliability prediction)
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
8 x 100/1000/2500Base-TX with X-coded M12 connectors 1 x RJ45 Console port |
|
LED Indicators |
Power, Link/Act, Speed, PoE |
|
Performance |
|
|
Switching Capacity |
40 Gbps |
|
Forwarding Capacity |
29.76 Mpps |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
12 Mbit |
|
RAM for CPU |
1 Gbit |
|
Flash Memory |
256 Mbit |
|
MAC Address Table |
16K |
|
Max. Jumbo Frame size |
16K |
|
ACL Table |
512 |
|
VLAN Quantity |
4K |
|
VLAN Interface |
32 |
|
Routing Host |
512 |
|
Routing Entries |
64 |
|
Port Queues |
8 |
|
Physical |
|
|
Dimensions |
292 x 147.5 x 50 mm |
|
Weight |
1.65KG |
|
Operating Temperature |
-40 to 75℃ |
|
Storage Temperature |
-40 to 75℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
44-57VDC |
|
Max. Power Consumption |
Including PoE Output: 240W Excluding PoE Output: 15W |
|
EMC Safety |
FCC, CE, RoHS |
|
Power over Ethernet |
|
|
PoE Interfaces |
All 8 100/1000/2500Base-TX PoE ports |
|
PoE Standard |
IEEE802.3af, IEEE802.3at |
|
Max. PoE Wattage per Port |
30W |
|
PoE Voltage |
52VDC (Depend on Power Adapter) |
|
PoE Pin Assignment |
V- (M12 Pin1,2), V+ (M12 Pin 3,4) |
|
Port Configuration |
|
|
Enable and Disable |
Support control enable and disable |
|
Auto-Negotiation |
Support force port mode and speed |
|
Flow Control |
Support IEEE802.3x full-duplex Support half-duplex backpressure |
|
Storm Control |
Support broadcast, multicast and DLF package rate limit |
|
Port Mirroring |
Support many to one mirroring |
|
Rate Limit |
Support Port input and output rate limit |
|
Link Aggregation |
Support manual Link Aggregation Support LACP Up to 8 maximum aggregation groups, each containing up to 8 ports |
|
Aggregation Strategy |
Source src-dst-mac Source src-dst-mac-ip |
|
Port Protection |
Each port can be configured into isolated protected port from each other |
|
MAC Configuration |
|
|
MAC Address Table Management |
Support |
|
MAC Quantity Limitation |
Support limit the number of MAC-addresses Learning per port |
|
VLAN Configuration |
|
|
VLAN Based on 802.1Q |
Support |
|
MAC-Based VLAN |
Support |
|
Surveillance VLAN |
Support |
|
Protocol-Based VLAN |
Support |
|
Guest VLAN |
Support |
|
Voice VLAN |
Support |
|
Reliability Protocol |
|
|
Spanning Tree |
Support STP/RSTP/MSTP |
|
Port Loop Detection |
Support |
|
LLDP Protocol |
Support LLDP and LLDP-MED |
|
UDLD Protocol |
Totally compatible with UDLD protocol of CISCO |
|
L3 Routing |
|
|
Static Routing |
Support |
|
Multicast |
|
|
Static Multicast MAC Address |
Support |
|
IGMP SNOOPING |
Support |
|
IGMP Querier |
Support |
|
IGMP Filter |
Support |
|
MVR |
Support |
|
GMRP |
Support |
|
Access Control List (ACL) |
|
|
Based on Standard IP |
Support |
|
Based on Extend IP |
Support |
|
Based on MAC IP |
Support |
|
Based on MAC ARP |
Support |
|
Quality of Service (QOS) |
|
|
Scheduling Mode |
Support WRR, SP, WFQ |
|
Sorting Based on Port |
Support |
|
Sorting Based on 802.1p |
Support |
|
Sorting Based on DSCP |
Support |
|
DHCP |
|
|
DHCP Client |
Support |
|
DHCP Snooping |
Support |
|
Security |
|
|
Administrative Security |
Support start and end TELNET, WEB and SNMP serve Support TELNET, WEB and SNMP serve binding with Standard IP ACL Support control the number of user for TELNET |
|
CPU Protect |
Switch self-security protect, forbid flow attack |
|
IP-MAC Address Binding |
Support binding between static configuration IP, MAC and Port |
|
AAA |
Support 802.1x protocol Support RADIUS protocol Support RADIUS server authentication authorization and bill Support MAC-based 802.1X authentication. Support 802.1x guest VLAN |
|
DHCP SNOOPING |
Support dynamic ARP binding to prevent ARP spoofing Support dynamic IP, MAC port binding Support stationary port connect to DHCP server, to prevent privately connect to DHCP sever |
|
Prevent ARP Spoofing |
Support manual configure ACL rule based on MAC ARP prevent ARP spoofing Support DHCP SNOOPING function, switch dynamically binding ARP and port, when the DHCP get IP address , to prevent ARP spoofing |
|
Management Feature |
|
|
CLI Management |
Support serial port management Support TELNET management Support SSH management |
|
WEB Management |
Support HTTP/HTTPS |
|
SNMP Management |
Support SNMP protocol Support SNMP TRAP Support standard and private MIB |
|
User management |
Support multi-user management |
|
Show CPU Utilization |
Support |
|
Show RAM Utilization |
Support |
|
Log Management |
Support |
|
Configuration Download / Upload |
Support |
|
Upgrade Firmware |
Support |
|
Timer Management |
Support local timer management Support SNTP protocol get clock |
|
Debugging Tools |
|
|
PING |
Support |
|
TRACEROUTE |
Support |
|
TELNET Client |
Support |
|
Cable-Diag |
Support |
|
SFP DDM |
Support |
|
Package List |
|
|
Switch |
1pcs |
|
User Manual |
1pcs |
|
Power Cord |
1pcs |
|
DB9 to RJ45 Cable |
1pcs |
|
Rack Mount Kit |
2pcs |
|
Rubber Feet |
4pcs |
4 Order Information
|
Switch Models |
|
|
TNS4208-8P-M12-DC |
8 x 2.5G M12 Layer 3 Managed Industrial PoE Ethernet Switch |
