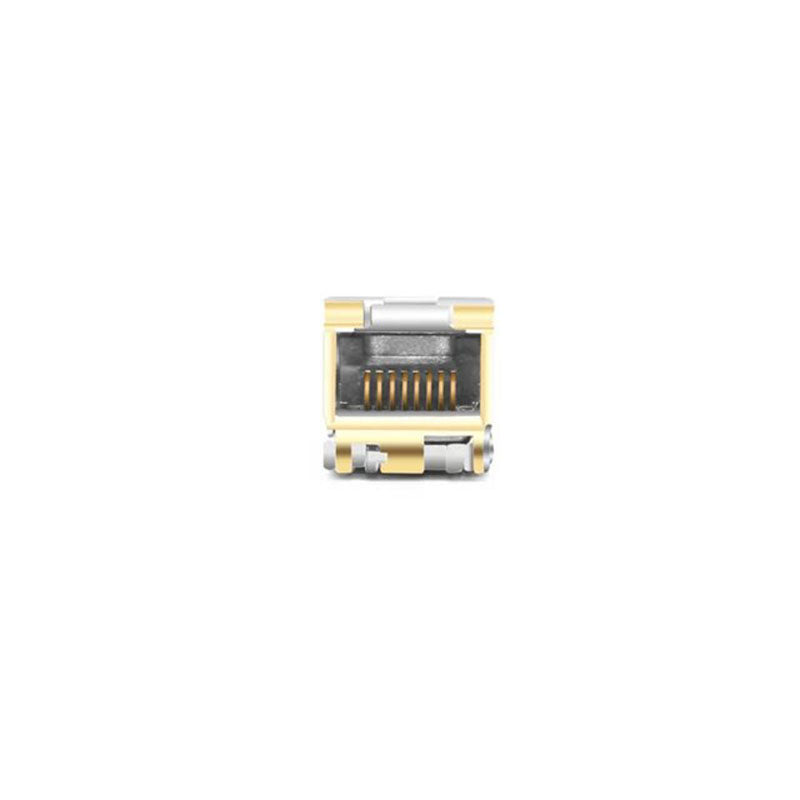

SFP-10G-TS 10GBase-T Copper SFP+ Transceiver

1 Description

SFP-10G-TS Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gbps data- rate up to 30 meters reach over unshielded twisted-pair category 6a/7 cables. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.

2 Product Features

• Up to 10Gb/s bi-directional data links
• Hot-pluggable SFP+ footprint
• Fully metallic enclosure for low EMI
• Low power dissipation
• Compact RJ-45 connector assembly
• Access to physical layer IC via 2-wire serial bus
• Supports Links up to 30m using Cat 6a/7 Cable
• RoHS Compliant
• Operating case temperature: Standard: 0 to +70°C

3 Application Scenario

• 10 Gigabit Ethernet over Cat 6a/7 cable

4 Order Information
