Required Host Support
Use a compatible 10G SFP+ port that supports 10GBASE-SR optical transceivers.

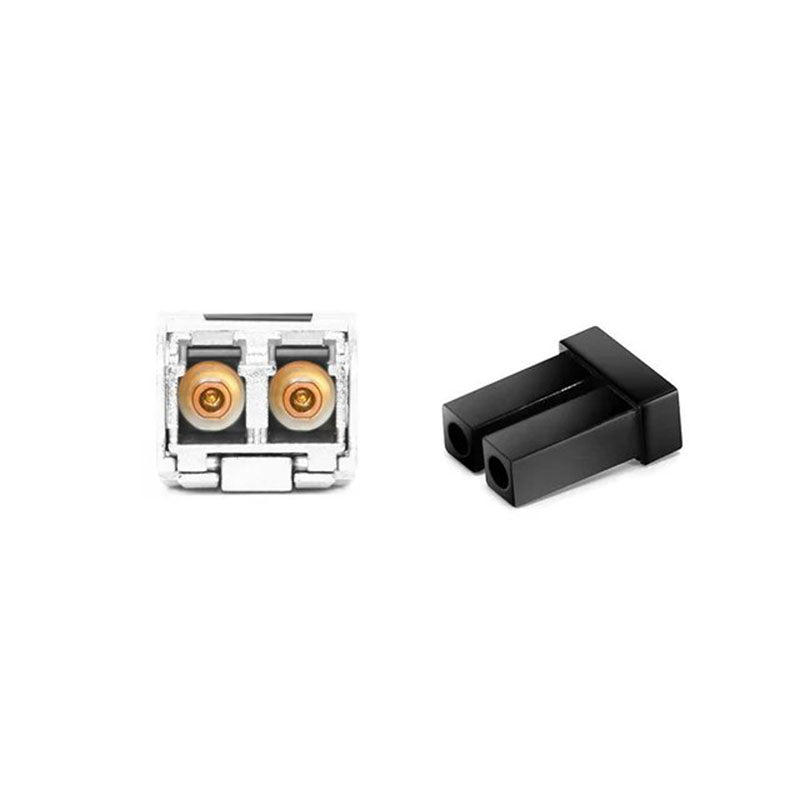

Product Overview
The SFP+ optical transceiver supports a data rate of 10Gbps . It supports transmission distances up to 300m over MMF .
The transceiver uses a VCSEL laser transmitter and a PIN photodetector receiver.
Designed for optical Ethernet transmission over duplex fiber links in compatible SFP or SFP+ host ports.
Built for Reliable Optical Connections
Key specifications for 10GBASE-SR SFP+ optical transceiver applications
10Gbps
10 Gigabit Ethernet
Designed for 10G optical Ethernet links using an SFP+ transceiver interface.
850nm MMF
Multimode Fiber
Designed for 850nm optical transmission over multimode fiber (MMF).
Up to 300m
Transmission Reach
Supports optical links up to 300m over compatible multimode fiber (MMF).
DDM / DOM
Digital Diagnostics
Supports digital diagnostic monitoring of optical power, temperature and module operating status.
Technical Specifications
| Parameter | Value |
|---|---|
| Data Rate | 10Gbps |
| Form Factor | SFP+ |
| Wavelength | 850nm |
| Media Type | MMF |
| Connector | Duplex LC |
| Reach | 300m |
| Laser Type | VCSEL |
| Receiver Type | PIN |
| DDM / DOM | Yes |
| Operating Temperature | 0°C to +70°C |
Application Scenarios
Typical applications for 10GBASE-SR SFP+ multimode optical connections
Data Center Server Uplinks
Used for short-distance high-speed connections between servers, switches, and storage systems in data centers.
Enterprise Network Backbone
Provides reliable 10Gbps optical links for enterprise aggregation and backbone networks.
Switch-to-Switch Connections
Designed for compatible SFP+ switches using multimode fiber cabling.
Connectivity Solutions
Typical network deployment scenarios using compatible optical transceivers and fiber connections.
Compatible Components
Connect two network switches using compatible optical transceivers and fiber cabling for reliable high-speed data transmission.
Compatible Components
Enable high-speed connectivity between network switches and servers through compatible optical transceivers and fiber cabling.
Compatible Components
Extend fiber networks to Ethernet devices using optical transceivers, media converters, and copper Ethernet connections.
Compatibility & Device Support
Compatibility requirements for 10GBASE-SR SFP+ optical transceivers
Port Compatibility
A matching SFP+ form factor alone does not guarantee compatibility. Verify host-device support and any vendor-specific transceiver requirements.
Cabling & Connection Guide
Recommended cabling path for 10GBASE-SR SFP+ multimode fiber links
Use a compatible SFP+ host and duplex LC multimode fiber for short-distance optical links.
Connection Path
SFP+ Host Port
10GBASE-SR SFP+
Duplex LC
Multimode Fiber (MMF)
Up to 300m
Quality Assurance & Validation
Quality and validation guidance for 10GBASE-SR SFP+ multimode optical transceivers
Quality Assurance
Products are inspected for workmanship, basic functionality, and consistency before shipment to support reliable deployment.
Typical Validation Focus
Typical validation considerations for 10GBASE-SR links include optical transmit and receive performance, link stability, 850nm wavelength operation and diagnostic reporting where supported.
Warranty & Support
Warranty and technical support information for Sailtel transceivers.
Support Information
For warranty and technical support, contact Sailtel with the product part number and order details for assistance.
Q&A
Are these optical transceivers hot-pluggable? ⌄
Yes. These optical transceivers are designed for hot-pluggable operation in compatible SFP or SFP+ host ports.
Can this optical transceiver work with Cisco, Arista, Juniper, HPE, MikroTik, or Ubiquiti switches? ⌄
Compatibility depends on the exact network device model, required SFP or SFP+ form factor, supported data rate, optical standard, and transceiver coding. Please provide the exact device model so compatibility can be confirmed before ordering.
How do I check whether this optical transceiver is compatible with my switch? ⌄
Verify the required SFP or SFP+ form factor, supported data rate, optical standard, wavelength, fiber type, connector type, transmission distance, and any vendor-specific transceiver coding requirements. Please provide the exact device model if compatibility confirmation is required before ordering.
What optical link standards does this 10GBASE-SR SFP+ transceiver support? ⌄
This transceiver is designed for 10 Gigabit Ethernet optical links, including 10GBASE-SR at a 10.3125Gbps line rate and 10GBASE-SW at 9.953Gbps.
What is a 10GBASE-SR SFP+ transceiver used for? ⌄
This 10GBASE-SR SFP+ transceiver is designed for short-range 10 Gigabit Ethernet optical links over multimode fiber, such as switch-to-switch, switch-to-server, and data center connections.
Can I use this 10G SFP+ SR transceiver with OM3 or OM4 multimode fiber? ⌄
Yes. This 850nm 10GBASE-SR SFP+ transceiver can be used with compatible OM3 or OM4 multimode fiber. This model is specified for transmission distances up to 300m, subject to the complete optical link meeting the required specifications.
Is this 10GBASE-SR SFP+ transceiver backward compatible with 1G SFP ports? ⌄
No. This model is specified for 10 Gigabit SFP+ operation. For a 1 Gigabit link, use a compatible 1000BASE-SX SFP transceiver instead.
Does a 10GBASE-SR SFP+ link require an optical attenuator? ⌄
An attenuator is normally not required for a standard 10GBASE-SR multimode fiber link within the specified operating range. The actual optical link budget should still be checked for unusual installations.
Can I connect a 10GBASE-SR module directly to a 10GBASE-LR module? ⌄
No. 10GBASE-SR and 10GBASE-LR use different wavelengths and fiber types. Both ends of the link should use compatible optical standards.
What fiber patch cable should I use with this 10GBASE-SR SFP+ module? ⌄
Use a duplex LC multimode fiber patch cable that matches the multimode fiber infrastructure of your network.
What data rate does this transceiver support? ⌄
This 10GBASE-SR SFP+ transceiver is designed for 10 Gigabit Ethernet and operates at a 10.3125Gbps line rate for 10GBASE-SR applications. It also supports 10GBASE-SW at 9.953Gbps.
What wavelength does this transceiver use? ⌄
It operates at a wavelength of 850nm.
What type of fiber should I use with this transceiver? ⌄
Use multimode fiber (MMF). This transceiver supports transmission distances up to 300m over compatible MMF.
What connector type does this transceiver use? ⌄
It uses a Duplex LC connector.
What is the maximum transmission distance? ⌄
It supports transmission distances up to 300m over compatible multimode fiber.
Does this transceiver support DDM/DOM? ⌄
Yes. This transceiver supports Digital Diagnostic Monitoring (DDM/DOM).
What is the operating temperature range? ⌄
The operating temperature range is 0°C to +70°C.
What laser and receiver types are used in this 850nm SFP+ transceiver? ⌄
This transceiver uses an 850nm VCSEL laser transmitter and a PIN photodetector receiver.
